Product ID 10807 · Diamond Wire · Mono & Multi Diamond Wire

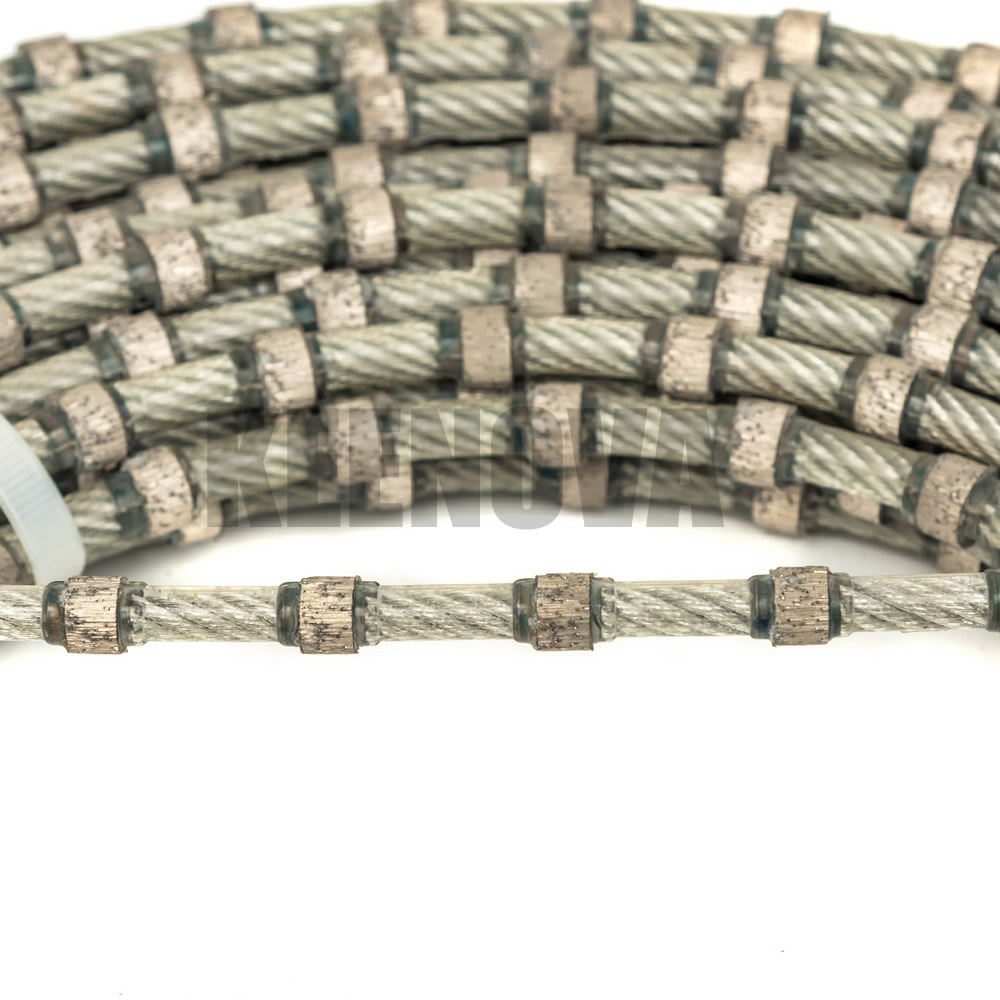

Model photograph. The photograph KEENOVA publishes for this model. Full specification available on request. Request the data sheet and product photo for this model.
| Field | Value |
|---|---|
| Product ID | 10807 |
| Standardised name | Mono Diamond Wire |
| Name as it appears today | Multi Diamond Wire |
| Top category | Diamond Wire |
| Sub-category | Mono & Multi Diamond Wire |
These values are published by KEENOVA for this model. They are not estimated, not copied from another model and not calculated.
| APPLICATIONS | Art No | Specification (mm) | Beads/M | Reinforcement |
| For all types of natural and artificial stone | BC110P | ¢11.0×6.0 | 37 | BASF Plastic |
| BC105P | ¢10.5×6.0 | 37 | BASF Plastic | |
| SC90P | ¢9.0×6.0 | 37 | BASF Plastic | |
| SC85P | ¢8.5×6.0 | 37 | BASF Plastic | |
| CC75P | ¢7.5×6.0 | 37 | BASF Plastic | |
| Cutting Material | Linear Speed (M/S) | Down Speed (CM/H) | Cutting Life(M2/M) | |
| Soft | 28-32 | 70-100 | 18-45 | |
| Medium | 28-32 | 50-80 | 14-40 | |
| Hard&Abrasive | 28-32 | 30-50 | 8-30 | |
| SPECIFICATION OF BEADS | Out Diameter | Length of work layer (mm) | Bead Length | Manufacture Tech |
| ¢11.0 | 6.0 | 11 | Sintered | |
| ¢10.5 | 6.0 | 11 | Sintered | |
| ¢9.0 | 6.0 | 11 | Sintered | |
| ¢8.5 | 6.0 | 11 | Sintered | |
| ¢7.5 | 6.5 | 8.5 | Sintered |
These are the values KEENOVA has released for this model. Nothing is estimated, and nothing is taken from another model.
1 further models sit in the same sub-category (Mono & Multi Diamond Wire). They are listed because KEENOVA files them in the same grouping — not because we assume they are interchangeable. Check the specification before substituting one for another.
Tell us the conditions this product has to work in. We send the full specification, the options available and current lead time.
