Product ID 12607 · Quarry Cutting Machines & Tools · Quarry Cutting Machinery

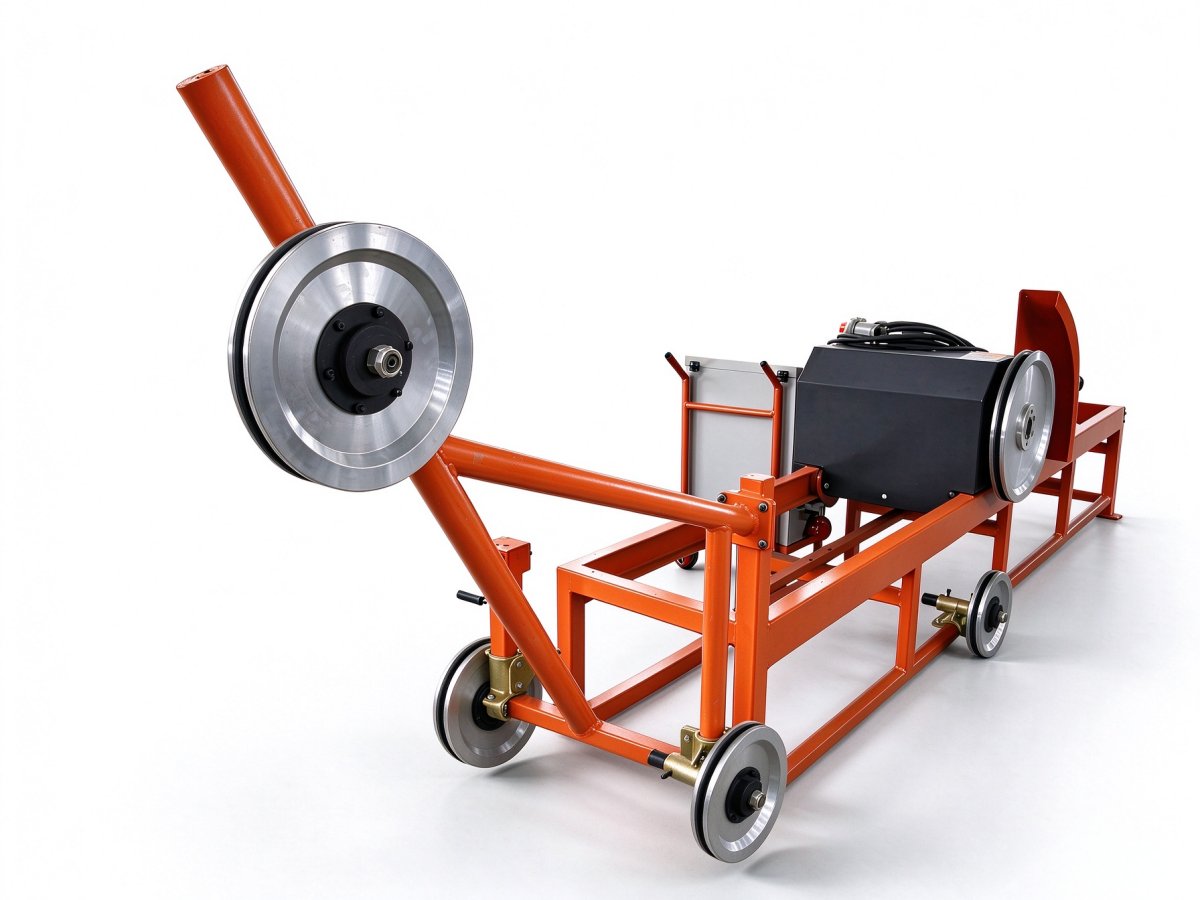

Model photograph. The photograph KEENOVA publishes for this model. Full specification available on request. Request the data sheet and product photo for this model.
| Field | Value |
|---|---|
| Product ID | 12607 |
| Standardised name | BTWSM-KN226 Long-Rail Block Squaring Wire Saw Machine |
| Name as it appears today | BTWSM-KN226 Long-Rail Block Squaring Wire Saw Machine |
| Top category | Quarry Cutting Machines & Tools |
| Sub-category | Quarry Cutting Machinery |
The BTWSM-KN226 Long-Rail Block Squaring Wire Saw Machine is designed for squaring and trimming large stone blocks, trimming quarry blocks and cutting block ends, and shaping stone blocks in factory environments.
Its compact structure, traveling mechanism and diamond wire tension control are designed to support practical block-trimming operations in quarry and stone-processing applications.
These values were supplied and confirmed by KEENOVA for this model. They are not estimated, not copied from another model and not calculated.
| Parameter | BTWSM-KN226 |
| Model | BTWSM-KN226 |
| Main Motor Power | 22 kW / 30 HP |
| Drive Wheel Diameter | Ø550 mm |
| Main Flywheel Speed | 0–970 rpm |
| Wire Speed Range | 0–40 m/s |
| Traveling Speed | Max. 1 m/min |
| Traveling Mechanism | Variable-frequency motor and pinion drive |
| Traveling Motor Power | 0.37 kW |
| Maximum Wire Length | 5–40 m |
| Machine Dimensions | 3800 × 900 × 1200 mm |
| Machine Weight | 800 kg |
Values supplied and confirmed by KEENOVA (Robin (approved content, this task)) on 2026-10-17. Nothing estimated, nothing copied from another model. Reference: Robin-approved specification sheet (this task).
Only values supplied by KEENOVA are published. Parameters that are not published yet are listed by name below. No value on this page is estimated, copied from another model or calculated.
Specification status: Awaiting supplier confirmation — 2 technical parameters are not published yet (Power supply, Application). Ask for the data sheet and we will send the complete set for this model.
Request the data sheet for BTWSM-KN226 Long-Rail Block Squaring Wire Saw Machine
6 further models sit in the same sub-category (Quarry Cutting Machinery). They are listed because KEENOVA files them in the same grouping — not because we assume they are interchangeable. Check the specification before substituting one for another.
Tell us the conditions this product has to work in. We send the full specification, the options available and current lead time.
