Product ID 10703 · Construction Cutting Machines · Wall Saw Systems

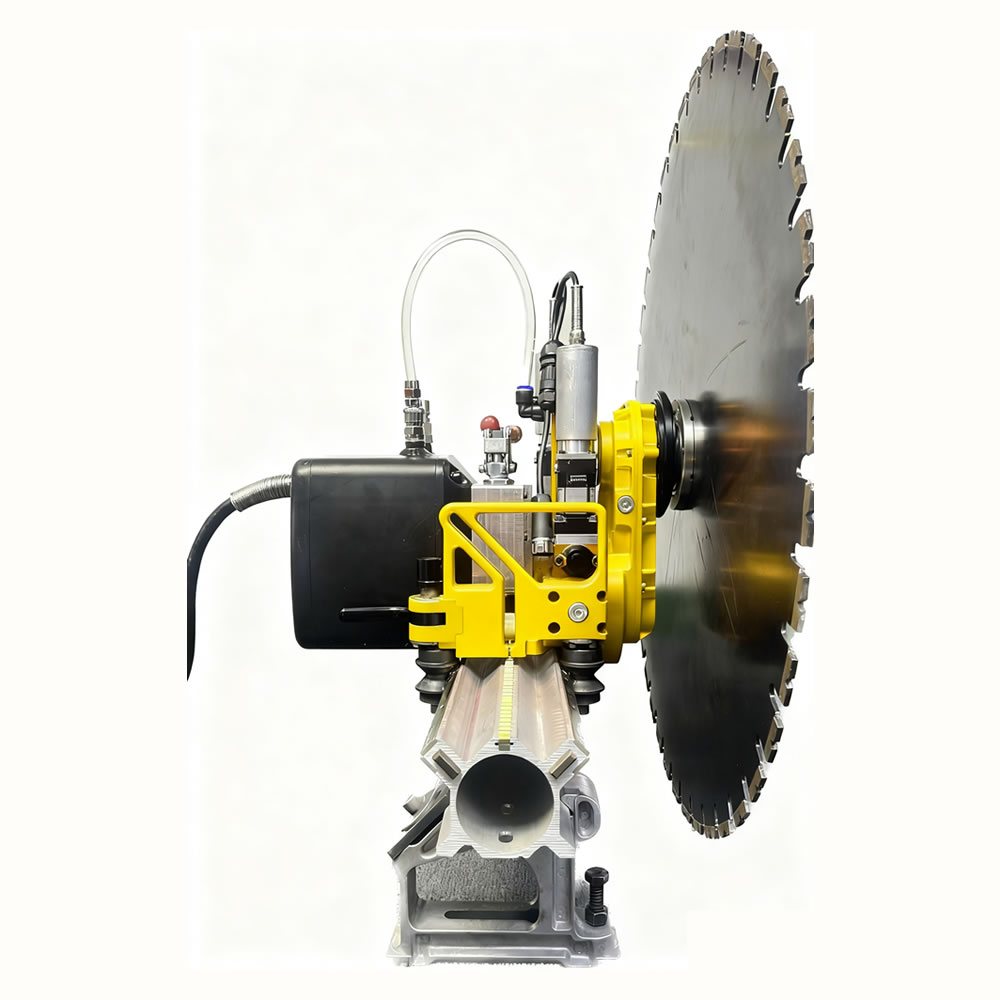

Model photograph. The photograph KEENOVA publishes for this model. Full specification available on request. Request the data sheet and product photo for this model.
| Field | Value |
|---|---|
| Product ID | 10703 |
| Standardised name | Wall Saw Cutting System |
| Name as it appears today | Wall Saw Cutting System |
| Top category | Construction Cutting Machines |
| Sub-category | Wall Saw Systems |
These values are published by KEENOVA for this model. They are not estimated, not copied from another model and not calculated.
| Parameter | Value |
| Into the way | 360degree rotary arm into cutting site |
| Wall Saw Head Weight | 26.5KGS |
| Rail Weight/Length | 8.8KGS/1M, 17.6KGS/2M |
| Diameter of Blade | 800-1600mm |
| Maximum Cutting Depth | 700mm |
| Cutting Speed | 500RPM/900RPM/1400RPM |
| Bore Hole | 60mm |
| Flange Diameter | 125mm |
These are the values KEENOVA has released for this model. Nothing is estimated, and nothing is taken from another model.
1 further models sit in the same sub-category (Wall Saw Systems). They are listed because KEENOVA files them in the same grouping — not because we assume they are interchangeable. Check the specification before substituting one for another.
Tell us the conditions this product has to work in. We send the full specification, the options available and current lead time.
