55KW Quarry Wire Saw Machine
Reliable Cutting Power for Natural Stone Quarries

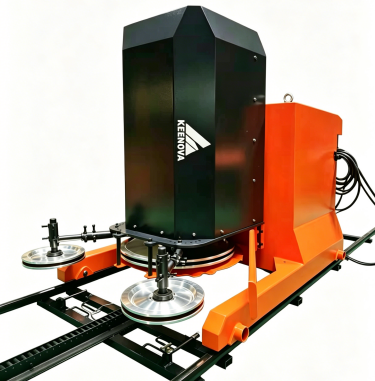

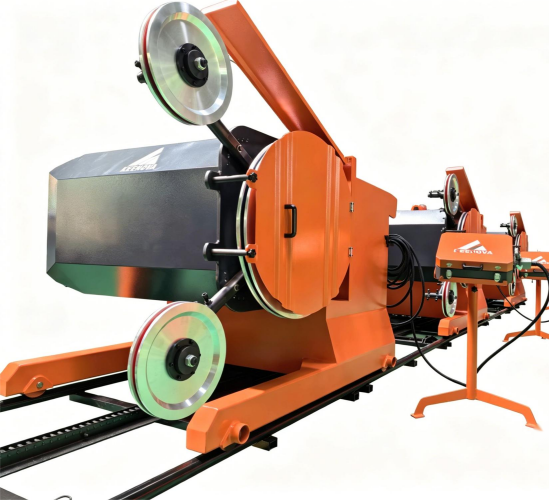

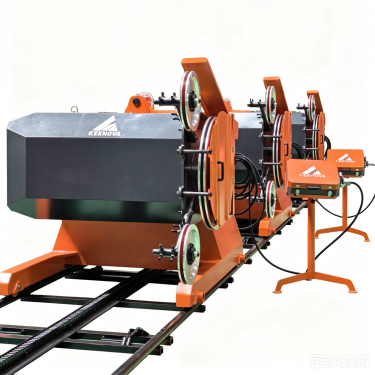

The KEENOVA 55kW Quarry Wire Saw Machine is designed for granite, marble and other natural stone quarrying applications. It combines stable wire operation, adjustable tension and flexible positioning for efficient block production and large-section cutting.
Key Features
55kW main motor for demanding quarry cutting
0–40 m/s adjustable wire speed

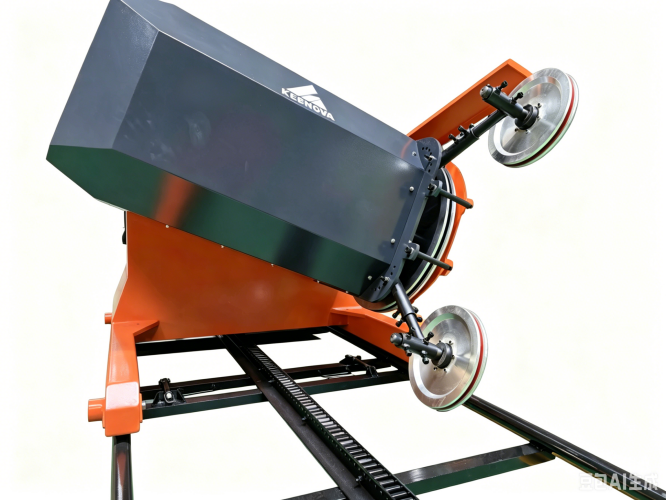

Motorized lateral movement360° rotatable flywheel holder
Stepless wire tension adjustment
PLC control with vector inverter
Remote control operation
Suitable for different quarry layouts and cutting conditions
Technical Specifications
| tem | Specification |
|---|
| Main Motor | 55kW |
| Wire Speed | 0–40 m/s |
| Control | PLC + Vector Inverter |
| Wire Tension | Stepless Adjustment |
| Flywheel Holder | 360° Rotation |
| Machine Weight | Approx. 2,800 kg |
| Dimensions | Approx. 212 × 170 × 197 cm |
Applications
Granite quarrying
Marble quarrying
Block production
Bench cutting
Block squaring & trimming
Diamond Wire Matching
The appropriate diamond wire depends on the stone type, hardness, abrasiveness, cutting dimensions and operating conditions.
Need help selecting the right machine and wire?
Share your stone type, cutting dimensions and production requirements with the KEENOVA team for a suitable configuration.
Send Your Requirements
