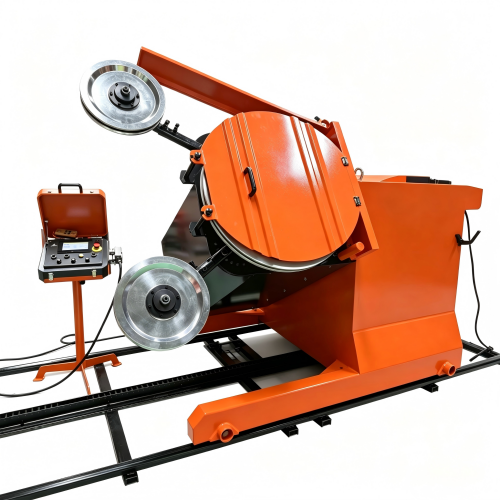

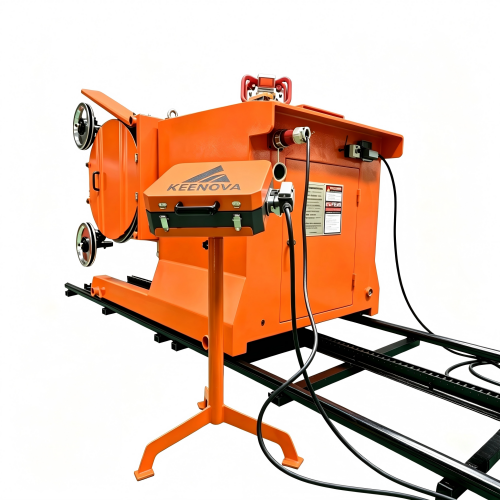

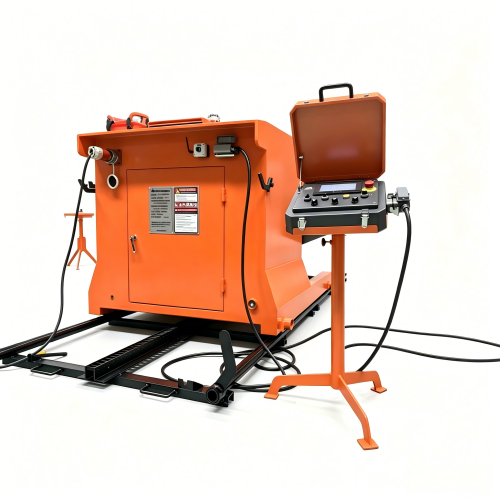

75kW Quarry Wire Saw Machine - Higher Cutting Capacity for Demanding Quarry Operations
The KEENOVA 75kW Quarry Wire Saw Machine is designed for natural stone extraction, large-section cutting and high-production block quarrying. With higher motor power and flexible wire control, it provides stable cutting performance for demanding granite, marble and other natural stone applications.
Key Quarrying Benefits
75kW high-power drive for demanding quarry cutting
Stable cutting performance for continuous production
Higher cutting capacity for large sections and heavy-duty applications
Flexible positioning with motorized lateral movement and 360° flywheel rotation
Precise wire control with stepless tension adjustment
Easy operation through PLC control and remote operation
Application-matched diamond wire for different stone and quarry conditions
Technical Specifications
| tem | Specification |
|---|
| Main Motor | 75kW |
| Wire Speed | 0–40 m/s |
| Control | PLC + Vector Inverter |
| Wire Tension | Stepless Adjustment |
| Flywheel Holder | 360° Rotation |
| Machine Weight | Approx. 3,000 kg |
| Dimensions | Approx. 212 × 170 × 197 cm |
Typical Applications
Complete Quarry Cutting Support
KEENOVA can match the wire saw machine, diamond wire and related quarry equipment according to your stone, cutting dimensions and production requirements.
Tell us your quarry conditions and cutting requirements →
